Home > 2014 BADBOY MOWERS > DIESEL > 2014 DIESEL COMPACT DIESEL FRAME 2014DCMPCTD
2014DCMPCTD / 2014DCMPCTD   Alternative Views:	Product Code: 2014DCMPCTD 2014 DIESEL COMPACT DIESEL FRAME: ITEM# 1, 070-5570-00, OUTLAW DIESEL FRAME 2012 ITEM# 2, 028-6020-00, Outlaw Rear Actuator Bar Assy ITEM# 3, 028-6010-00, Outlaw Front Actuator Bar Assy ITEM# 4, 017-7008-00, 1" Pillow Block Bearing ITEM# 5, 018-5006-00, 1/2-13 X 1-1/2 GR 5 Hex Bolt ITEM# 6, 019-5007-00, 1/2 Lockwasher Zinc ITEM# 7, 013-7018-00, 1/2-13 Hex Nuts Zinc ITEM# 8, 018-2050-00, 10mm Damper Ball Stud-Steering ITEM# 9, 013-9002-00, 5/16-18 Hex Flange Nuts Zinc w ITEM# 10, 013-8050-00, 1/2-13 Nylon Insert Flange Nut ITEM# 11, 018-0008-00, 1/2 x 1 1/2 Carriage Bolt ITEM# 12, 028-6055-00, Outlaw Linkage Bar Susp Frame ITEM# 13, 035-7033-00, Actuator for Pup/Lightning/AOS ITEM# 14, 018-5049-00, 1/2-13 X 2 GR 5 Hex Bolts Zinc ITEM# 15, 019-5702-00, 1/2 SAE Flat Washer GR 8 ITEM# 16, 018-4010-00, 1/2-13 Nylon Insert Jam Locknu ITEM# 17, 019-6017-00, .630 ID X 1.122 OD X .142 THK ITEM# 18, 025-7036-00, 1/2 Set Collar w/set collar ITEM# 19, 018-7016-00, 1/2-13 X 3 GR 5 Hex Bolts Zinc ITEM# 20, 026-2100-00, OUTLAW HEIGHT INDICATOR PLATE ITEM# 21, 040-4000-00, MZ Deck Height Lever Pin ITEM# 22, 031-0100-00, Outlaw Deck Lever Lock ITEM# 23, 019-2003-00, .390x.750x.062 Nylon Washer ITEM# 25, 025-5203-00, Spacer 3/4ODx1/2IDx0.75 Susp f ITEM# 26, 013-5202-00, 3/8 Nylock Flange Nut ITEM# 27, 079-3200-00, OUTLAW DIESEL FLOOR PANEL ITEM# 28, 081-2008-00, Foot Assist Floor Mat ITEM# 29, 040-6080-00, Ratchet Fastener - Floorboard ITEM# 30, 018-8064-00, 1/4-20 X 5/8 BS C/S 18-8 SS ITEM# 31, 064-2006-00, Floorboard Cable ITEM# 32, 013-8049-00, 5/16-18 Nylon Flange Nut ITEM# 33, 018-8065-00, 5/16-18 X 1 Carriage Bolt Zinc ITEM# 34, 019-6042-00, .360 ID Plastic Washer ITEM# 35, 026-0013-00, Outlaw Deck Lift Pedal ITEM# 36, 030-0010-00, 5/16-18 x 1 Thumb Screw Zinc ITEM# 37, 040-5000-00, Pull Pin - Foot Assist w/Ring ITEM# 38, 030-7039-00, 14 X 1-1/2 HWA A T/S Zinc ITEM# 39, 019-7040-00, 1/4 USS Flat Washer Zinc ITEM# 40, 029-7037-00, 14 Bumper ITEM# 41, 087-6100-00, 250lb Gas Spring - 61" Outlaw ITEM# 42, 018-2050-00, 10MM DAMPER BALL STUD-STEERING ITEM# 43, 013-9002-00, 5/16-18 HEX FLANGE NUTS ZINC W ITEM# 44, 032-3000-00, Actuator Bar Bushing-SF-1620-4 ITEM# 45, 089-3050-00, 2 x 3 ROPS 2012 & Up - Diesel Qty:

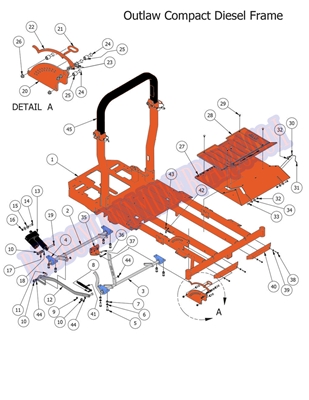

Description   Features Above you will see the 2014 Diesel Frame (Compact Diesel) Assembly drawing. If you scroll down to the larger view, of the 2014 Diesel parts, you can point and click on the 2014 Diesel part that you need for your Bad Boy Mower. Or you can look at the drop down menu for a list of the parts in the picture for the 2014 Diesel Bad Boy Mower. Find all of your 2014 Diesel Bad Boy Mower Parts here at www.badboylawnmowerparts.com. Still cannot find your 2014 Diesel Parts? Call us! 904-259-5494 We strive to have the Bad Boy Parts that you need. We stock 1000s of Bad Boy Parts for your Bad Boy Mower. If we don't stock the Bad Boy Part you need for your Bad Boy Mower, we can still get the Bad Boy Part to you by direct ship from Bad Boy Mowers. Related Items 2014 DIESEL SUSPENSION FORK ASSEMBLY 2014DSUSPFRK 2014 DIESEL 61 DECK ASSEMBLY 2014D61DK 2014 DIESEL 35HP CAT DIESEL ENGINE 2014D35HPDE 2014 DIESEL SPINDLE ASSEMBLY 2014DSPND 2014 DIESEL SUSPENSION & WHEEL MOTOR 14DIESUSBCKPUMP 2014 DIESEL DRIVE ARM ASSEMBLY 2014DDAASSY 2014 DIESEL RADIATOR ASSEMBLY 2014DRADASSY 2014 DIESEL 28HP CAT DIESEL ENGINE 2014D28HPDE
